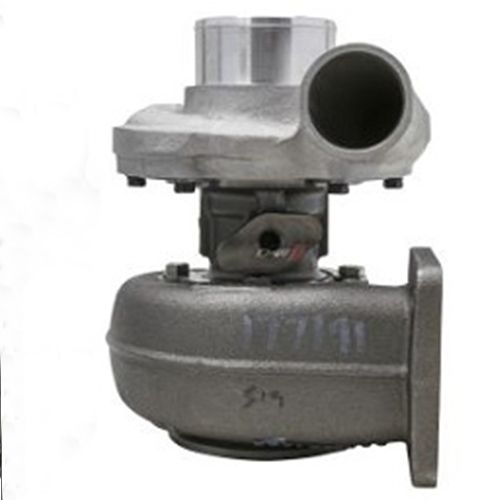

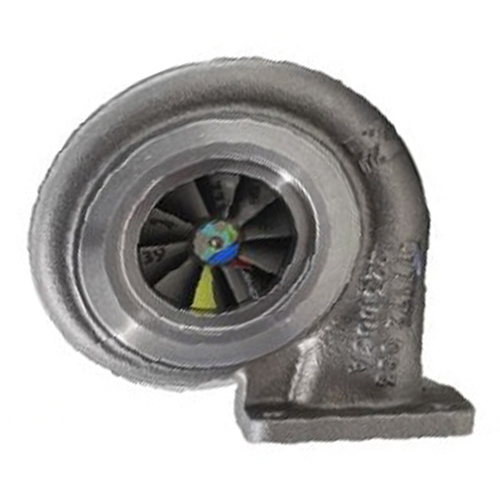

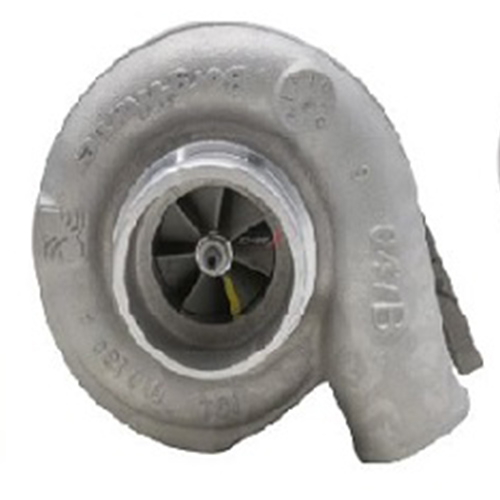

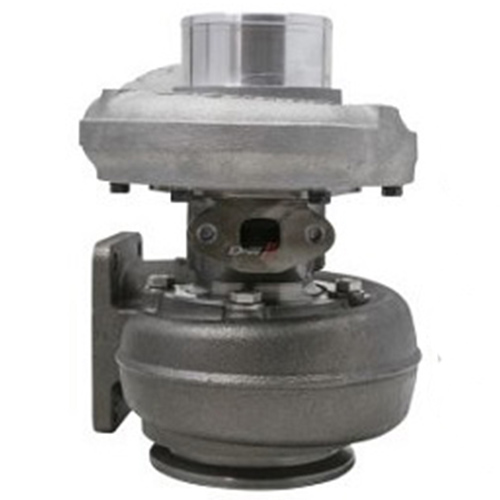

2002-10 John Deere Various S200S069 Turbo 177257
Part Number 177257
Previous Version 173354, 173354R, 173407, 173407R, 173588, 173588R, 173753, 173753R, 173754, 173754R, 173921, 173921R, 174139, 174139R, 174176, 174176R, 177257R
OE number RE516007, RE518094, RE518517, RE518519, RE519662, RE519787, RE519800, RE520580, RE520643, RE520650, SE501677, SE502188, SE502348, SE502381, 473354, 473407, 473588, 473753, 473754, 473921, 474139, 474176, 477257
Year 2902-07
Description John Deere 460D Skidder Various
Manufacturer Part Number 173588, 173921, 173753, 174176, 173407, 173354
CHRA 176638 (167638)(1000070104)
Turbo Model S200S069
Engine 6068H
Engine Manufacturer John Deere
Displacement 6.8L, 6800 ccm
Fuel Diesel
KW 220 HP
Bearing Housing 172242 (Oil Cooled)(1900011261C)
Turbine Wheel 169779 (Ind. 61.3 mm, Exd. 69.47 mm, Trm 9.18, 10 Blades)(1100016547)
Comp. Wheel 172244 (Ind. 48.83 mm, Exd. 73. mm, Trm 5.11, 7+7 Blades, Superback)(1200016759)
Back plate 167744 (1253200300, 1800016065)
Heat shield Number 194149 (2030016117)
Repair Kit 318383 (318382)(1253200750, 5000030021)
Gasket Kit 318418
Gasket (turbine inlet) 310694 (407294-0001)(Stainless Steel)
Gasket (oil outlet) 311496 (409037-0000, 210021-0000, 413671-0000, 3519807, 210021, 210021)
Manufacturer Borg Warner - 3K - Schwitzer, BWTS USA
Applications
2002-07 John Deere Various with 6068H Engine
2008- (2735) 640G-III Cable Skidder and 648G-III Grapple Skidder(S.N. 576603-604613) Worldwide Edition
2008- (2871) 460DC Cable Skidder and 460DG Grapple Skidder ( -604613)
2008- (9224) 7420 and 7520 Tractors (North American Edition)
2008- (9582) PowerTech 6.8L AG (6068 Tier 2 Engines)
2008- (2735) 640G-III Cable Skidder and 648G-III Grapple Skidder(S.N. 576603-604613) Worldwide Edition
2008- (2871) 460DC Cable Skidder and 460DG Grapple Skidder ( -604613)
2008- (9224) 7420 and 7520 Tractors (North American Edition)
2008- (9582) PowerTech 6.8L AG (6068 Tier 2 Engines)
2008- (2521) PowerTech 4.5L Engines; Torreon (PE) (ESN 010000-), Saran (CD) (ESN500000-), Dubuque (T0) (ESN 700000-)
2008- (9239) 1070D Wheeled Harvester (S.N. -1300)
2007- (9246) 1410D Forwarder (s.n. 0472-1200)
2007- (9264) 1490D Slash Bundler (Timberjack)
2008- (9584) PowerTech 6.8L (6068) Tier 2 Engines - C & F Applications
2008- (9224) 7420 and 7520 Tractors (North American Edition)
2008- (9582) PowerTech 6.8L AG (6068 Tier 2 Engines)
2008- (4351) 6820, 6920, 6920S Tractors (European Edition)
